The Physics of Survival: Differentiating Extreme Off-Road and Rally Coilovers
Two coilover kits. One costs $1,200 and one costs $3,500. On paper they look similar. Both offer ride height adjustment. Both have adjustable damping. Both claim improved handling. In extreme off-road and rally use, the difference is not branding. It is thermal dynamics and material science. One survives. One does not.
Two coilover kits. One costs $1,200, the other $3,500. On paper they look similar. In extreme off-road and rally use, the difference is thermal dynamics and material science. One survives a full stage. One does not.
Why Standard Coilovers Fade Under Off-Road Loads
Every time a damper compresses and rebounds, it forces oil through restrictive valves. That friction controls wheel movement and generates heat. In normal driving the shock body dissipates that heat easily. In rally or high-speed desert running, piston velocity increases dramatically. The heat builds faster than it can escape.
Two things happen when damper oil overheats. First, viscosity breaks down. The oil thins, passes through the valving too easily, and you lose damping control. The ride becomes unpredictable. Second, cavitation. The fluid boils and creates air pockets. Air compresses. Oil does not. When air pockets form in the damper, it effectively stops working mid-stage.
This is shock fade. It is the primary reason a $1,200 coilover kit and a $3,500 unit behave the same in a parking lot and completely differently after three miles of washboard road at speed.
The Reservoir Solution: Heat Sinks, Not Aesthetics

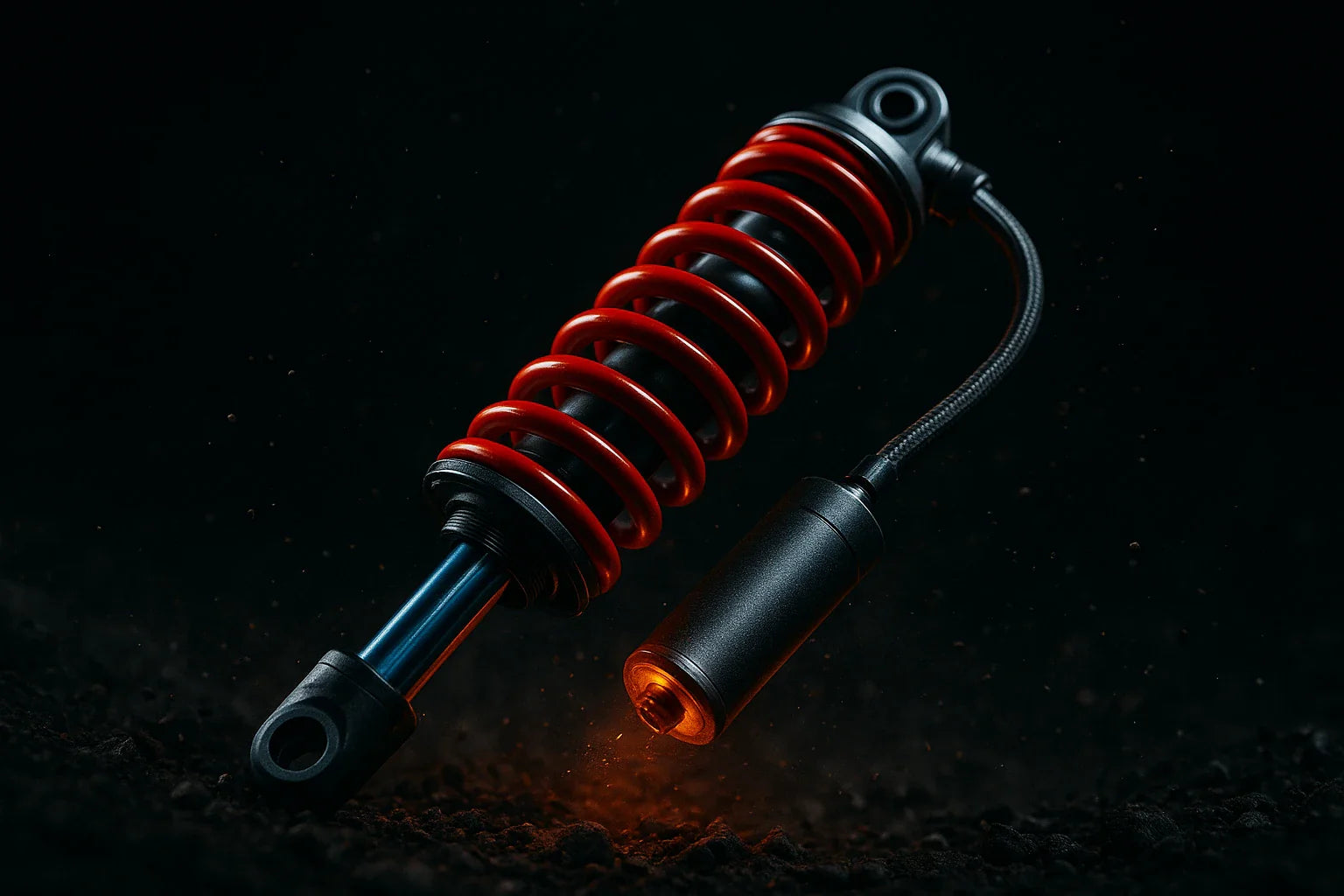

External reservoirs, whether piggyback or remote mounted, solve the thermal problem. By moving the nitrogen gas charge to a separate canister, total oil volume increases by 30 to 50 percent. More oil takes longer to heat up.
The real advantage goes beyond volume. A standard shock body dissipates heat at roughly 11 W per square meter per kelvin in static air. A remote reservoir mounted in the airstream reaches nearly 20 W per square meter per kelvin. That airflow is the difference between a damper that fades after three miles and one that holds damping control across a 100-mile desert stage.
Remote reservoirs are not cosmetic. They are a calculated engineering decision based on expected velocity, stage length, and terrain roughness. If you drive above 40 mph over rough terrain for more than 15 consecutive minutes, a remote reservoir is not optional equipment. It is a thermal requirement.
Rebuild Math vs. Replacement Cost
A 2.0-inch emulsion shock is generally considered disposable after 40,000 to 50,000 miles. A 2.5-inch reservoir shock is fully rebuildable. Buy it once and refresh it indefinitely. In severe off-road use, inspect nitrogen pressure and seals every 20,000 to 30,000 miles. Over the life of the build, a rebuildable unit is often cheaper than three rounds of disposable replacements.
RALLY ENGINEERING: HIGH-FREQUENCY RESPONSE
Inverted design from Feal, KW, and Tein places the heavy body attached to the chassis and the lighter shaft at the wheel hub. That reduces unsprung weight. The wheel reacts faster to rapid bumps. The tire stays in contact between impacts. On a stage road with rapid surface changes, that response speed is the difference between making the corner and missing it.
Bypass valving is the other rally secret. Fluid skips the main piston mid-stroke for a plush feel. At the end of travel, stiff valving prevents bottoming. The result is plush over chatter and firm on big hits. The damper handles two jobs with one piece of hardware.
Spring rate selection on rally cars is tighter than most drivers expect. The damper can only do its job if the spring rate puts it in the right part of the valving curve. A coilover kit tuned for rally use is matched end-to-end, not assembled from generic parts.
ROCK CRAWLING: HIGH-AMPLITUDE, LOW-SPEED
Long-travel architecture offers maximum stroke for articulation across uneven terrain. Nitrogen pressure runs 350 to 400 psi to prevent oil foaming during violent full-travel compressions. The spring rate must allow free wheel movement over obstacles.
This is a very different engineering problem than desert or rally. Rock crawling has huge amplitude at low frequency. The damper has to support the wheel at full droop and then absorb a full-travel impact when the wheel drops into a hole. Speed is not the issue. Travel length and articulation are.
A coilover kit for rock crawling uses linear valving for free wheel movement. Digressive valving on a rock crawler would lock the wheel at the wrong moment and prevent it from reaching full droop. The hardware choice matches the terrain problem.
Hydraulic Bump Stops: The Last Line of Defense
What happens at the end of travel determines how survivable a hard hit is. A rubber bump stop absorbs the energy linearly and returns it harshly. The chassis gets a sharp spike. The shock shaft risks bending.
Hydraulic bump stops engage only for the last 2 to 4 inches of travel. They use progressive damping that grows exponentially stiffer as they compress. The energy from a massive impact gets absorbed and controlled rather than bounced back into the chassis. For any build that gets airborne or regularly hits high-speed whoops, hydraulic bump stops are not a luxury upgrade. They are structural protection for the damper body, shaft, and the coilover's internal seal.
COLD WEATHER AND CORROSION
Standard steel spherical bearings corrode in road salt and brine. For rust-belt and cold-climate drivers, stainless steel shock bodies or coatings like KW Inox-line are the right answer. Booted shafts and sealed bearings extend service life dramatically.
Generic O-ring seals shrink and harden below minus 30 degrees Celsius. They can discharge nitrogen overnight. Purpose-built off-road coilovers use high-durometer seals for arctic conditions. The locking collar holds its ride height setting across temperature swings when the seals are correctly rated. A daily driver in a cold climate deserves seal specs built for the actual conditions, not a generic summer seal.
Salt damage to the locking collar threads is another hidden cost. Once the threads corrode, the collar cannot hold ride height and often seizes in place. Regular cleaning and anti-seize treatment protect the adjustment range of a coilover kit you plan to keep for years.
MATCHING TECHNOLOGY TO TERRAIN
BC Racing and Fortune Auto offer performance suspension coilover kits spanning street and light off-road use. KW specialized lines cover rally-adjacent builds with proper thermal engineering. Feal and Ohlins build at the high end of damping control for terrain-specific applications. Bilstein off-road monotubes are valved specifically for high-frequency desert inputs. Tein offers rally-tuned options with clean valving control at a midrange price point.
Reducing unsprung weight through lighter wheels and hubs compounds the benefit of any coilover selection. Less mass for the damper to control means faster recovery between impacts and less fatigue on the shock package. This is the single largest multiplier in off-road suspension tuning and it costs less than most people expect.
Reducing unsprung weight through lightweight wheel and hub choices works alongside the coilover choice. A lighter unsprung assembly responds faster to terrain inputs regardless of whether you are running a rally unit or a long-travel rock-crawling setup. The coilover provides the spring rate and damping. The unsprung weight determines how fast that system can react.
Frequently Asked Questions
Do I really need external reservoirs for occasional trail use?
Slow-speed rock crawling usually does not require them. Above 40 mph on rough terrain for more than 15 continuous minutes, reservoir volume becomes a thermal requirement, not a luxury.
Can I install long-travel coilovers on stock mounting points?
Usually yes, to a point. True long-travel systems may require reinforced mounts or aftermarket control arms. Verify mounting requirements for your specific travel target before ordering.
Why are some coilovers inverted?
Inverted design reduces unsprung weight. It places the rigid damper body at the stress point for better lateral strength. The wheel reacts faster to rapid inputs.
How do I know if my shock has faded?
Bouncing where it previously felt controlled after sustained high-speed rough road driving. Behavior improves after cooling. That cycle confirms thermal fade.
What nitrogen pressure should off-road coilovers run?
Rock crawling units typically 350 to 400 psi. Rally and desert units follow manufacturer specifications based on valving. Incorrect pressure affects damping and can damage seals.
What is bypass valving?
Fluid bypasses the main piston mid-stroke for compliance. Near the end of travel, stiff valving prevents bottoming. Most valuable on high-speed desert and rally builds.
How do I inspect a used off-road coilover?
Run a fingernail across the shock shaft. Any scoring that catches a nail means the shaft will tear seals immediately. Check nitrogen pressure. Inspect for oil seepage at the shaft wiper and around the locking collar.
