Chassis Bracing & Structural Reinforcement: Enhancing Vehicle Rigidity
You spent real money on a quality coilover kit from KW or Fortune Auto. You set the ride height and dialed the damping. Then you push hard into the first hairpin and the steering still feels vague. The car doesn't take a set the way it should. Before you reach for stiffer springs, check the actual foundation. The problem is often chassis flex.
You spent real money on a quality coilover kit from KW or Fortune Auto. You set the ride height and dialed the damping. Then you push hard into the first hairpin and the steering still feels vague. The car does not take a set the way it should. Before you reach for stiffer springs, check the actual foundation. The problem is often chassis flex.
Think of your suspension as a diving board. If the base is anchored to solid concrete, the board performs exactly as designed. If it is bolted to a deck that flexes under load, all that engineered precision is wasted compensating for movement. Your coilover is the diving board. The chassis is the mount. If the mounting points shift under load, your coilover kit fights flex instead of controlling the tires.
THE PHYSICS OF FLEX
During hard cornering, an unbraced chassis can experience up to a 3x force imbalance from side to side. Engineering data shows that extreme lateral loads can cause an unbraced chassis to suffer up to 1.5 degrees of dynamic camber change. Comprehensive chassis bracing systems can reduce perceived body roll by up to 40 percent. That comes simply from maintaining a flatter, more consistent suspension plane.
The effect is not just about cornering force. A flexing chassis also shifts the mounting geometry your coilover relies on. If the strut tower walks under load, your static alignment is not the alignment the car actually runs at speed. Bracing closes that gap and lets the coilover kit work against the numbers it was valved for.
Comprehensive chassis bracing systems can reduce perceived body roll by up to 40 percent simply by maintaining a flatter, more consistent suspension plane. The coilovers are not working harder. They are finally working as intended, because the mounting points stop moving.
STRUT TOWER BRACES
The symptom here is steering numbness and delayed turn-in response.

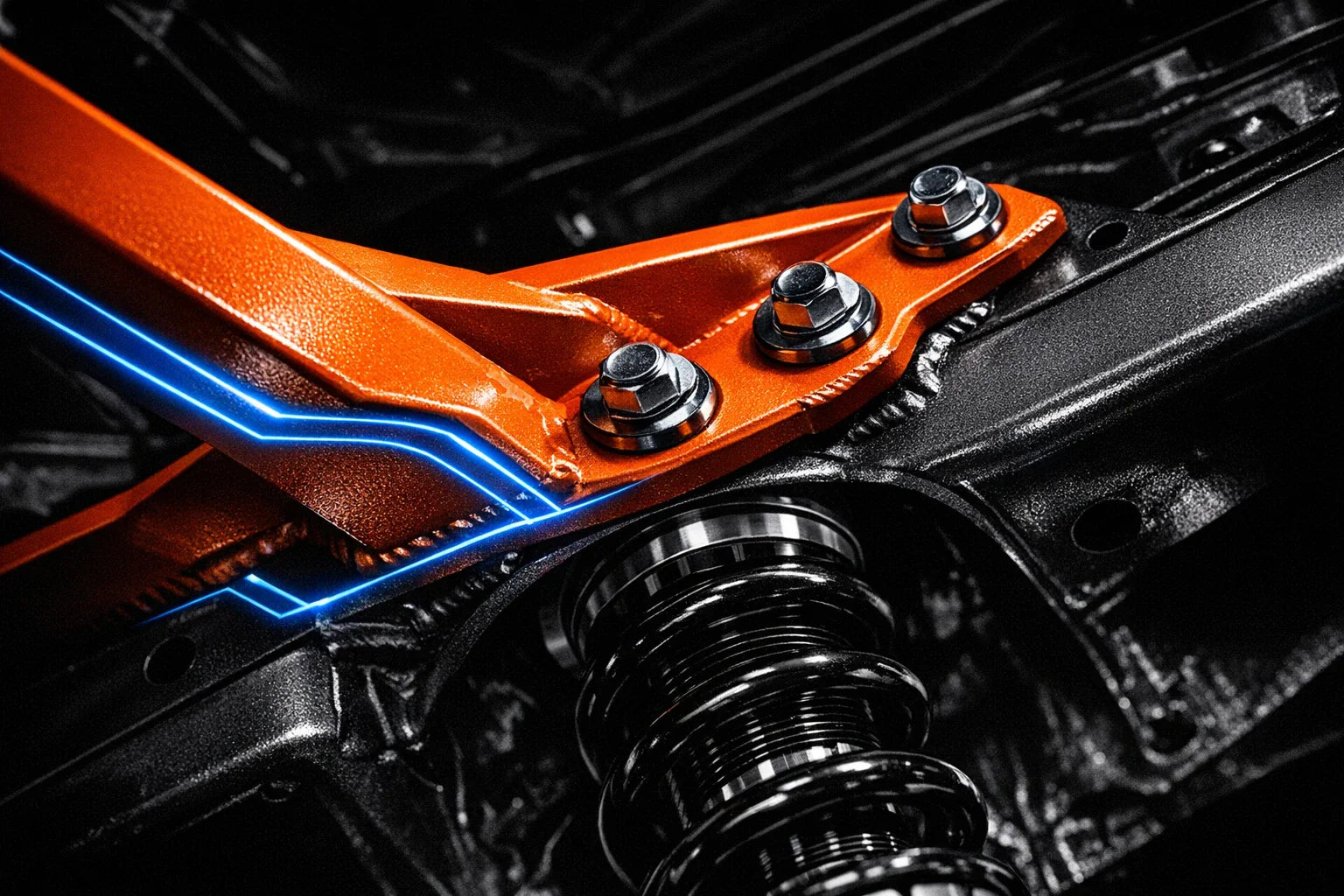

Strut tower braces connect the left and right strut towers across the engine bay at the front or across the trunk at the rear. When you turn the wheel, lateral forces try to push the towers inward or pull them apart. A strut bar locks them at a fixed distance. Your steering input goes to the wheels rather than flexing sheet metal. For most street-driven cars this is the first and highest-return bracing upgrade.
A good strut bar is a solid one-piece unit with proper mounting plates. Multi-piece bars with adjustable links often introduce their own flex. If you are going to install a bar at all, the one-piece design is worth the extra cost.
SUBFRAME CONNECTORS
The symptom here is wheel hop, rear-end movement under hard acceleration, and inconsistent power delivery.
Older platforms, especially muscle cars, use separate front and rear subframes connected mainly by the floor pan. Subframe connectors bridge that gap and tie the front and rear of the chassis into one unit. On high-horsepower builds this is not optional. The twisting loads from a big torque hit can pull the front subframe out of parallel with the rear if the connection path is flexible.
Connectors also stabilize the geometry your coilover kit depends on at each end. A consistent wheelbase under acceleration and braking means the damper sees consistent inputs. That helps your spring rate and damping settings do their actual job.
FENDER AND LOWER TIE BRACES
The symptom here is dashboard vibration over bumps and a wandering front end.
Fender braces reinforce the junction between the A-pillar and the front strut tower. Lower tie braces lock the lower control arm mounting points together. Together they eliminate twisting in the front third of unibody cars under braking. The front of the car stops walking around under hard stops, which makes trail-braking into a corner more predictable.
Quick Build Guide
Match the brace to the symptom. Steering numbness gets a strut tower bar. Wheel hop gets subframe connectors. Scuttle shake gets fender and lower tie braces. Buying all three at once rarely helps if only one problem is present.
STREET VS. TRACK: THE NVH DECISION MATRIX
Tier 1, Street driver: Front and rear strut tower braces. NVH impact is negligible. Your coilovers benefit from the tighter mounting points. Your passengers do not notice a change.
Tier 2, Street and occasional track: Add lower subframe braces and fender braces. Slight increase in road texture but tolerable. This tier is where most enthusiasts who track a few times a year end up.
Tier 3, Dedicated track car: Weld-in subframe connectors, multi-point roll cage, solid bushings. Road noise enters the cabin significantly. This is a trade you make on purpose for race-level chassis response.
Tier 3, Dedicated track car: Weld-in subframe connectors, multi-point roll cage, solid bushings throughout. Maximum torsional rigidity. The coilover kit operates at full efficiency. Road noise enters the cabin significantly. This tier is not appropriate for daily driving.
Material Choices: Steel, Aluminum, Carbon Fiber
Steel offers the best rigidity per dollar. It will not bend under extreme stress. It is the right choice for underbody work and subframe connectors where the weight sits low and does not affect handling balance. The downside is mass added above the center of gravity when used heavily in the engine bay.
Aluminum is lighter and resists corrosion. High-grade tubular aluminum provides excellent stiffness for strut tower applications without top-heavy weight gain. To match steel's stiffness the tubing must be thicker, which can create clearance issues in tight engine bays.
Carbon fiber gives the best strength-to-weight ratio. It adds essentially no weight while contributing real rigidity. The cost is high. Carbon bracing makes sense on competitive track builds where every pound matters and the budget supports it.
Platform-Specific Priorities
Different platforms flex differently. Applying a generic bracing approach wastes money on parts that address the wrong weak points.
Older muscle car platforms flex at the rear rail and the front frame pockets. Subframe connectors are mandatory on these cars before any other bracing investment. Without them, the chassis absorbs energy that should be going through the coilovers.
Front-wheel-drive track builds face heavy loads at the front subframe because steering, acceleration, and most braking all happen at the same corner. A lower front K-brace keeps the lower control arm mounting points from spreading under hard acceleration. This directly reduces torque steer and keeps the front tires on their contact patches when trail-braking.
INSTALLING COILOVERS FIRST
Start with the coilover kit. BC Racing, KW, and Fortune Auto kits transform handling so clearly that the remaining weak points become obvious. Ohlins, Tein, Bilstein, and Feal performance suspension builds make this even clearer. You cannot diagnose chassis flex accurately until the suspension is doing its job properly.
The locking collar on your coilover ride height adjuster also relies on a stable mounting point. Reducing chassis flex keeps the locking collar setting consistent. It reduces stress on the coilover body and extends seal life. A chassis that twists under load slowly walks the locking collar position, which shifts your ride height over time.
Frequently Asked Questions
Are strut tower bars actually worth buying or just engine bay decoration?
They are worth it when you buy a quality solid one-piece bar. Their job is to prevent dynamic camber loss when the strut towers flex inward under cornering. That gives a noticeable improvement in steering feel after a coilover install.
Will chassis braces make my daily driver harsher?
Upper strut braces and lower tie bars typically do not add harshness. By stopping the chassis from flexing over bumps, you put the coilovers to work absorbing impact. Harshness increases when you add solid bushings throughout at the same time.
Do I need weld-in bracing or is bolt-on enough?
For 90 percent of street and moderate track use, high-quality bolt-on bracing is enough. Weld-in kits are reserved for dedicated track cars and high-torque drag builds where the chassis must hold together under repeat hard launches.
Should I install coilovers or chassis bracing first?
Install the coilovers first. Once the suspension is dialed in, you will feel exactly where flex remains and know which brace to buy. Diagnosing chassis flex with factory suspension still bolted on is difficult.
What is the single highest-return chassis brace for a street car?
A front strut tower brace for most cars. It is inexpensive, fast to fit, and directly reduces steering vagueness after installing coilovers. You feel it on the first drive.
How does chassis flex affect coilover spring rate and damping settings?
Flex acts as an unmeasured, uncontrolled spring. It absorbs energy that should go through the coilover. After bracing, many drivers find they need less aggressive damping because the coilovers are finally doing all the work.
Is carbon fiber bracing worth the price?
For competitive track builds where weight reduction is a priority, yes. For street and occasional track use, quality aluminum achieves similar rigidity at a fraction of the cost.
