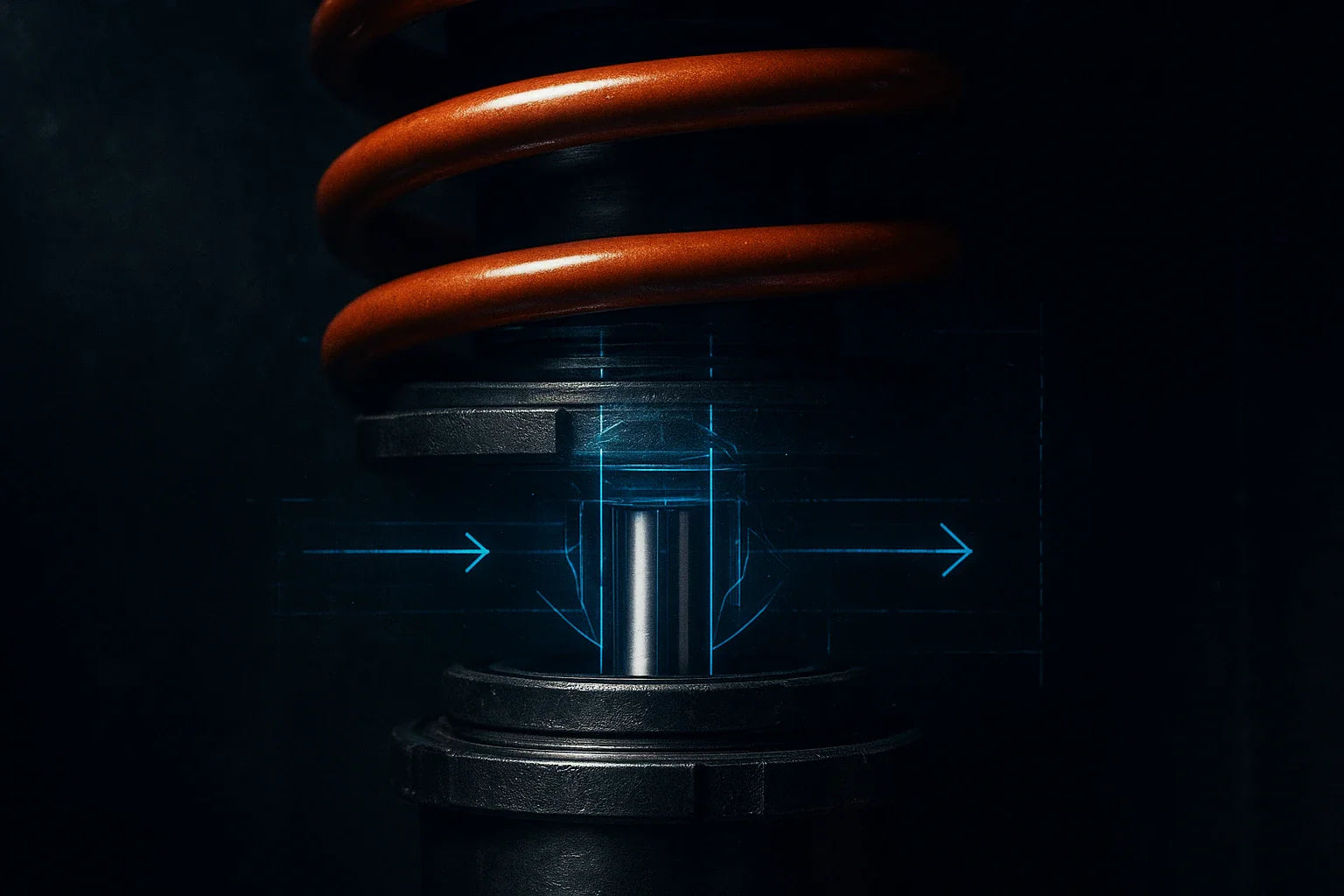

Illustration of a coilover with an orange spring and a blue overlay showing the damper shaft under sideways load

The Silent Killer: How Improper Geometry Destroys Coilovers (And How to Prevent It)

This article was written by Coilovers.com Owner and Principal, Lou Tortola.

Lowering your car without sorting out its geometry is a common cause of early coilover wear. Side load, lost bump travel and bushing bind all work on the damper and its seals. This guide covers suspension geometry and coilover failure: how to spot the problem and how to protect your kit.

You compared spring rates, read up on monotube versus twin-tube, and picked a coilover kit you trust. Maybe it was a KW V3. Maybe it was a BC Racing kit with custom spring rates. Either way, you want it to last. Geometry decides a lot of that.

The kit itself is rarely the weak link. The arms, links and bushings around it were designed for the factory ride height. Drop the car and they start working at angles they were never meant to see. The coilover pays for it.

Suspension Geometry and Coilover Failure: How Side Load Wears the Damper

A damper is built to work along its own axis. The shaft slides in and out in a straight line. Suspension arms move in arcs. Those two motions never match perfectly, so some sideways force always reaches the damper.

When you lower a car a long way, the arm angles change. On many layouts, more of the tire's load now pushes across the damper instead of along it. That is side load. It presses the shaft against the rod guide and seal.

Side load adds friction, which you feel as a sticky, harsh ride over small bumps. Over time it wears the rod guide and seal unevenly. Once the seal stops sealing, oil can weep out and the gas charge can drop. Damping fades from there.

Which Cars Are Most at Risk: MacPherson Strut vs. Double Wishbone

Not every car carries the same risk. The risk of coilover failure from suspension geometry depends on your layout. MacPherson strut cars often need correction parts such as camber plates or roll center adjusters. Double wishbone cars usually have more margin.

Why Strut Cars Are More at Risk

In a MacPherson strut design, common on BMW, Subaru and VW platforms, the strut is a structural part of the suspension. It locates the hub and forms the upper steering pivot. That means the damper already carries bending and side loads in normal driving. A big drop can add to them.

This is why some coil over struts use an inverted design. The BC Racing RM Series uses an inverted monotube for MacPherson strut cars. The thicker tube takes the bending load, which keeps the strut stiff and smooth under hard cornering.

Why Double Wishbone Cars Have More Margin

In double wishbone or multi-link systems, common on older Hondas, Lexus and many higher-end sports cars, the arms locate the wheel. The damper mostly just damps. Side load on the shaft is much lower, so seal wear from geometry is less of a worry.

Lowering does not change unsprung weight on either layout. Unsprung weight is the mass that moves with the wheel: wheel, tire, hub, brakes, knuckle and part of the arms and damper. Geometry changes the angles those parts work at, not their mass.

BC Racing coilover kit with four adjustable coilovers, spare springs and mounts, and a BC Racing spanner wrench

Camber, Toe and Roll Center

Camber and the Contact Patch

Camber is the tilt of the wheel seen from the front. Lowering usually adds negative camber, because the arms swing up through their arc. Some negative camber helps grip in a corner. Too much wears the inside edge of the tire.

How you correct it matters. Camber plates tilt the whole strut, so the shaft stays in line with its own body. Camber forced in through bent parts or mismatched geometry is a different story. That can increase side load on a strut. Even high-end kits from Öhlins or Fortune Auto need the geometry set correctly to do their job.

Toe and Tire Scrub

Toe is the direction the tires point, inward or outward, seen from above. Lowering changes toe on most cars, sometimes a lot. Excess toe makes the tire scrub across the pavement instead of rolling cleanly.

The cost shows up at the tire first. You get feathered tread, fast wear and a car that wanders or darts over road seams. Steering feel goes vague. Any height change calls for an alignment, because camber and toe both move with ride height. Our guide to suspension geometry and alignment covers the targets.

The Roll Center

The roll center is the point the body rolls around in a corner. On many cars, especially strut cars, lowering drops the roll center faster than the center of gravity. The gap between them grows. More roll moment means more body roll for the same spring rate and sway bar.

On perch-only kits, a big drop also eats bump travel. The car reaches the coilover bump stops sooner and more often. Each hard hit sends a spike through the damper and top mount. Roll center adjusters and correct bump stop length help bring that back under control.

Why Coilovers Alone Are Not Enough

Many early coilover problems start next to the coilover, not inside it. Parts designed for the factory ride height get asked to work somewhere else.

The Stabilizer Link Problem

Your sway bar connects to the suspension through end links. Factory links are a fixed length. Lower the car and the link angle changes. At a big drop, a stock link can sit at a poor angle or even bind near the end of travel.

On a level car, the bar itself sits unloaded. It only twists when one side moves more than the other. If the two links end up at different lengths, though, the bar is preloaded. That shifts corner weights and makes the car behave differently left and right. Set the links before any corner balancing. Adjustable links let you set both sides with the car at ride height.

Bushing Bind

Most factory rubber bushings are bonded. They twist instead of rotating. If the pivot bolts were tightened with the car in the air, lowering leaves those bushings twisted at ride height. That adds unwanted spring rate and makes the car feel harsh over small bumps.

The fix is free. Loosen the pivot bolts, set the car at ride height on ramps or wheel cribs, then torque the bolts. The bushings now sit neutral where the car spends its time.

Finding Your Drop HeightThe drop that looks great in photos is not always the drop that keeps your coilover happy. There is no single safe number for every car. It depends on your chassis, your wheels and your tires. A small drop often needs only an alignment. A larger drop usually calls for correction parts. Plan for those parts before you go low. The coilover kit is only one part of the equation.

A Checklist to Make Your Coilovers Last

Start with a modest drop and an alignment. Check camber, toe and bump travel at your new height. If the numbers stay in range with factory arms, you may need nothing else.

Whiteline roll center and bump steer correction kit with two ball joints and two tie rod ends

Go lower and the list grows. Camber plates or adjustable performance control arms bring camber back. Adjustable end links reset sway bar link angles. Roll center adjusters help strut cars. Retorque bushings at ride height. On full-length kits like BC Racing, set height at the lower mount so the spring perch keeps its preload. Lock every locking collar when you finish.

Spring choice belongs on the list too. Swift Springs SPEC-R springs are an upgrade option on most BC Racing fitments. They ship standard on HM and ZR Series kits on most fitments.

Catching Geometry Damage Early

Geometry-driven wear builds slowly, which is what makes it easy to miss. By the time a coilover kit shows clear symptoms, some damage is often done. Watch for uneven tire wear, a ride height that drifts and noises that show up under specific loads. Our coilover noise guide helps you trace them.

Inspect the car on a schedule, not just when something feels wrong. Look for oil on the damper body, check the collars and top nuts, and measure ride height at each corner. A tape measure and ten minutes can catch a problem before it spreads to other parts.

If you have wondered how long coilovers last, improper geometry is one of the main reasons they wear out early. Get the geometry right and the damper can do its job and last longer.

Keep reading: Our guide to alignment after lowering.

Get Help Planning Geometry Correction

We stock BC Racing, KW, Fortune Auto and Feal coilover kits. We know which supporting parts each platform tends to need at each drop height.

Call 1-800-460-9106 and tell us your car, your wheels and how low you want to go. We will help you plan the parts before you turn a wrench.

1-800-460-9106 Browse Coilover Kits

Frequently Asked Questions

Will geometry correction stop my coilovers from making noise?
Often, yes. Clunks after lowering often come from end links at a poor angle, loose top nuts or bushings twisted at ride height. A spring that winds up without a working thrust bearing can pop as you steer. Find the source first, then correct it.
Do I need adjustable end-links?
If your end links sit at a steep angle at your new height, or bind near full travel, yes. Adjustable links restore a good link angle. They also let you set both sides to equal length with the car at ride height, so the bar is not preloaded.
How often should I check my geometry after lowering?
Recheck bolt torque after the first few hundred miles, because parts settle. Get an alignment after every ride height change. After that, check alignment whenever tire wear looks uneven or the car starts to pull.
What is the most common geometry-related coilover failure?
On strut cars, seal and rod guide wear from added side load is a common one. Heavy bump stop contact from lost travel is another. Both show up as weeping oil, harsh ride and fading damping. Correct the geometry and travel, then rebuild or replace the damper.
Can I correct geometry without buying adjustable arms?
On MacPherson strut cars, camber plates at the top mount can handle a mild to moderate drop. For larger drops, or multi-link rear suspension, adjustable arms are often the only way to restore camber and toe.
Does spring rate affect geometry-related wear?
Not directly. At rest, each corner carries its own weight whatever spring rate you run. A soft spring at a big drop can use up travel and hit the bump stops more. A stiffer spring resists that. Correct the geometry first, then pick your spring rate.
How do I know if my car has suspension bind?
With the car on stands, remove the spring or the coilover. Disconnect the end link. Then move the arm through its full travel with a jack. It should move smoothly, with no tight or notchy spots. Any binding points to bushings, links or arm angles.
