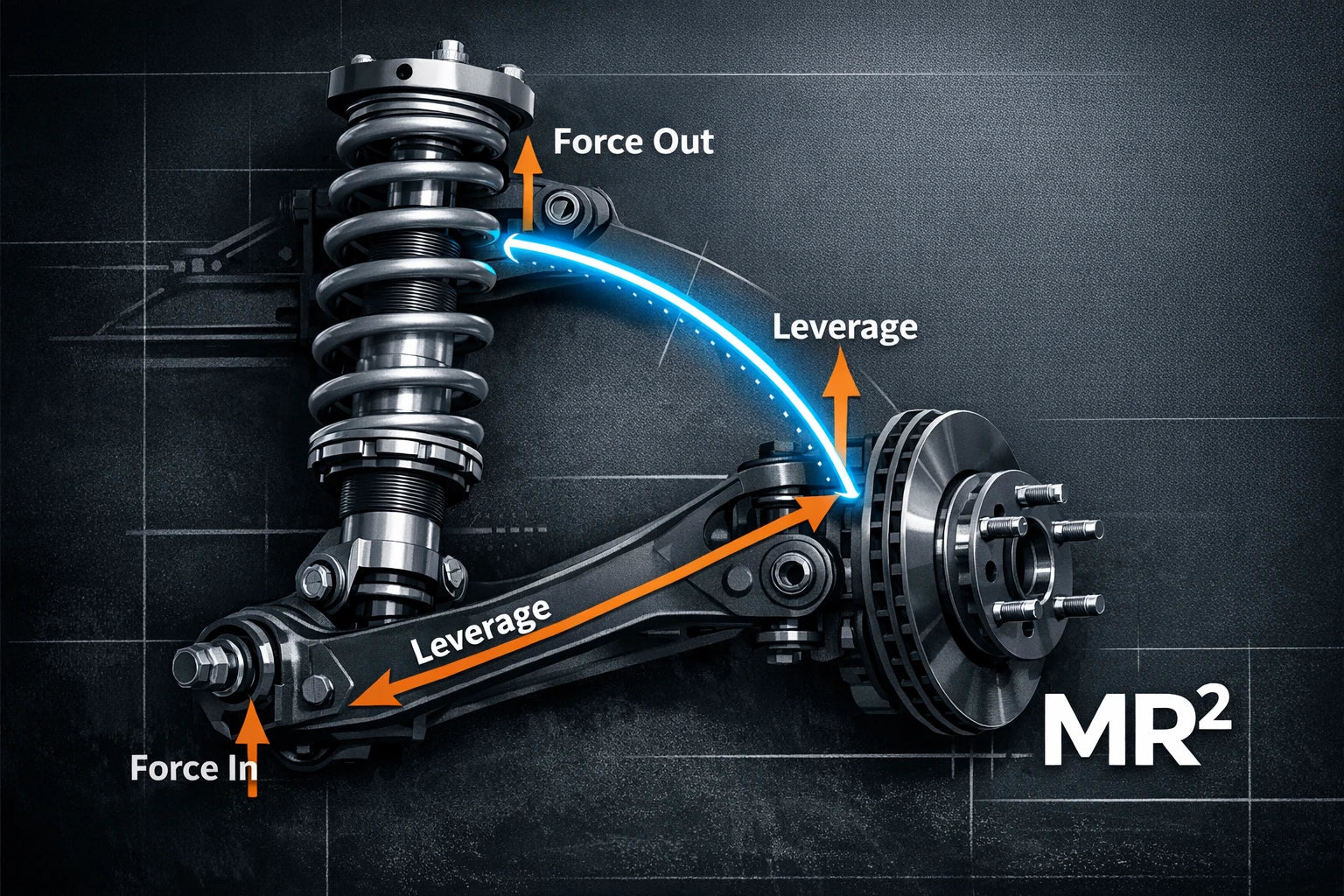

Illustration of a control arm and coilover with arrows showing force in, leverage and force out, labeled MR squared

The Physics of Ride Quality: Understanding Motion Ratios and Suspension Leverage

This article was written by Coilovers.com Owner and Principal, Lou Tortola.

If your new coilover kit feels mushy or harsh, the parts may not be the problem. The problem is often the leverage between those parts and your chassis. This guide explains motion ratios, wheel rate and damper shaft speed, so you can make sense of what the car is telling you.

You picked the spring rates with care. You bolted up the new dampers, set ride height and went for a drive. You expected a planted, dialed feel. Instead, the car feels soft where you wanted it firm, or it skips over bumps like a truck. The clicks seem to do less than you hoped. The coilover spring rate on the box seems to have nothing to do with how the car feels.

Most of the time, the missing piece is motion ratio. Once you understand it, a lot of confusing setup behavior starts to make sense.

Why the Wheel Sees Less Spring Rate Than You Bought

Buy an 800 lb/in spring and you might expect 800 pounds to lift the wheel one inch. That only happens when the spring sits straight over the wheel and moves exactly as far as the wheel does. On most cars, it does not.

Your suspension arms act as levers. The coilover usually mounts inboard of the wheel, so the wheel has leverage over the spring. That suspension leverage is the motion ratio. It is how far the damper compresses for each inch of wheel travel.

If the wheel moves one inch and the damper compresses 0.7 inches, your motion ratio is 0.7.

Here is the key point. Leverage does not cut stiffness in a straight line. It follows a square rule. Wheel rate, the stiffness the tire actually sees, equals spring rate times the motion ratio squared. At 0.7, the wheel sees 0.49 of the spring rate. That 800 lb/in spring works like about 390 lb/in at the wheel.

Front and rear often run different ratios on the same car. That is why a kit can use far different spring rates front and rear and still feel balanced. The wheel rates are what match, not the numbers on the springs.

Think in Wheel RateThe main job in suspension tuning is matching spring rate and damping to the real leverage of your chassis. A stiff spring feels soft when the motion ratio is low. A modest spring feels firm when the motion ratio is close to 1:1. Always think in wheel rate, not spring rate.
Bilstein B12 front strut with a yellow body and a black Eibach spring

Shaft Speed: Why a Good Damper Can Feel Wrong

Most suspension guides stop at spring rates. But springs only hold the car up. Dampers control how fast it moves, through the damping force they generate. Motion ratio has a big effect on the damper too.

First, it sets shaft speed. With a motion ratio of 0.5, the damper shaft moves at half the speed of the wheel. A wheel that hits a bump at 20 inches per second only drives the shaft at 10 inches per second.

Second, it scales coilover damping force at the wheel. Like spring rate, the damping the wheel feels works out to the damper's rate times the motion ratio squared. So the same damper feels much softer on a low-ratio car than on a car near 1:1.

This also explains why coilover click settings can feel weak. Each click changes force at the damper. On a low-ratio corner, the wheel only sees a fraction of that change. The adjuster is working. The lever is just eating part of it.

That is why valving is set for each car. A kit built for your car, from BC Racing, KW or Fortune Auto, is set up for that car and its geometry. The low-speed and high-speed circuits are meant to line up with the shaft speeds that car produces.

Trouble starts when the two do not match. A damper valved for a different motion ratio will not line up with your wheel speeds. Neither will a damper fighting springs far off its intended rate. The kit can be well made and still feel wrong, because it is working outside the range it was set up for.

Can Electronic Damping Make Up for Geometry?

We often get asked whether electronic damping can make up for geometry that is not ideal.

Semi-active systems, a branch of active suspension, adjust damping on the fly, based on what the car is doing. Some cars come with them from the factory. Bilstein builds EVO SE kits for cars with factory electronic damping. BC Racing's ASP Series is an adjustable spring perch kit that keeps the factory dampers. TEIN's EDFC lets you change damping from the cabin, which makes it easy to try settings.

Electronics can change how much damping you get at a given moment. They cannot change the lever. Wheel rate still equals spring rate times the motion ratio squared, and shaft speed is still set by the geometry. Get the springs and geometry right first.

Motion ratios vary a lot by layout. Struts often sit close to 1:1. Many double wishbone and multi-link cars sit well below that. Race cars with pushrod and rocker setups let the designer choose the ratio, and whether it rises or falls through the travel. There is no single correct number. There is only the number your car has. Our suspension kinematics guide covers how each layout moves.

Bilstein EVO T1 coilover strut with a gray body, blue collar and black and gray springs

Using Motion Ratio to Fix Common Complaints

The math is only useful if it helps you make a call. Here is how common complaints line up with it.

  • Mushy turn-in and lots of body roll despite stiff springs: Work out your wheel rate. A low motion ratio may mean the tire sees far less stiffness than the spring number suggests. A higher spring rate, a revalve to suit it, or stiffer anti-roll bars may be the answer.
  • Harsh and skittish over small bumps: Your wheel rate may be high for the car's weight. Or the damping may be too firm for that wheel rate. Start by softening damping from the kit's manual setting. If that does not fix it, look at spring rate.
  • Fine on flat roads, floaty over dips and crests: The body is moving too freely after each bump. That usually points to too little rebound damping for the spring. Add rebound in small steps.

To find your motion ratio, measure it. Put the car on stands, take the spring out or loosen it fully, and jack the wheel through its travel. Measure how far the wheel moves and how far the damper shaft moves. Divide shaft travel by wheel travel. Check at ride height, because the ratio can change through the travel.

Bilstein EVO T1 kit: two front coilover struts, two rear dampers, rear springs and perches, a spanner wrench and hardware

Damper angle matters too. A coilover leaning away from vertical compresses less for the same wheel travel, which lowers the effective ratio. Measuring the shaft directly captures that, which is one more reason to measure rather than guess. Once you have the number, you can pick a spring rate by the wheel rate you want. If you run a BC Racing kit, custom spring rates are available on most fitments, and so are Swift Springs SPEC-R upgrade springs.

Keep reading: Our guide to spring rates.

Not Sure If Your Spring Rates Match Your Motion Ratio?

We carry BC Racing, KW, Fortune Auto, Öhlins, Bilstein, TEIN and Feal. Call 1-800-460-9106 and we will help you work through the math for your car and how you drive.

1-800-460-9106 Browse Coilover Kits

Motion Ratio and Unsprung Weight

Motion ratio decides how much of the wheel's movement the spring and damper see. Unsprung weight is the mass the springs do not carry: wheels, tires, hubs, brakes and part of the arms and damper. The lighter that mass, the less force it takes to keep the tire following the road. A coilover kit does not cut unsprung weight on its own. It only changes it when a part that moves with the wheel gets lighter.
