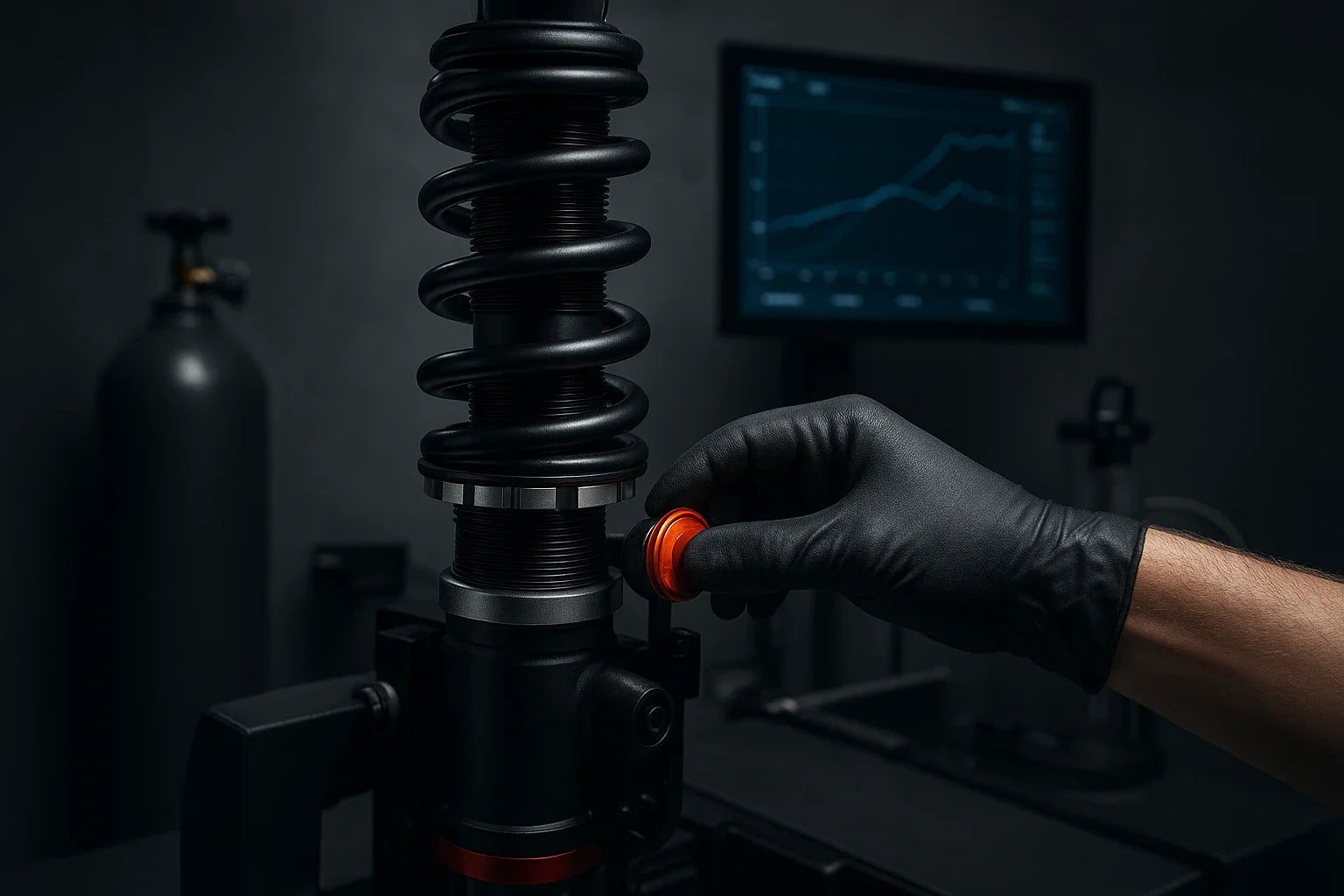

Advanced Coilover Servicing: Engineering Precision & Specialized Equipment
Most enthusiasts stop at the installation. They set the ride height, get an alignment, and drive until something clunks. The install-and-forget approach leaves performance on the table and quietly damages components over time. This guide covers the specialized equipment and advanced techniques that separate proper coilover servicing from guesswork.
You did not invest in a coilover kit just to guess your way through setup and maintenance. You might be running BC Racing BR Series on a daily driver, or dialing in Ohlins for the track. Either way, there is a real difference between bolting on parts and actually optimizing a suspension system.
Most enthusiasts stop at the installation. They set the ride height, get an alignment, and drive until something starts clunking. The install-and-forget approach leaves performance on the table and can quietly damage your components over time.
The Expert's Toolkit: Why Hand Tools Are Not Enough
Planning a rebuild or evaluating a high-end coilover kit? You need to understand the limits of a standard garage setup. A coilover is not just a spring. It is a complex hydraulic system managing immense energy. Service it by hand without the right equipment and you introduce variables that make consistent performance impossible.
Vacuum Bleeding vs. Hand Bleeding
The greatest enemy of a damper is air. In a traditional hand bleed, a mechanic pumps the shaft to cycle oil and remove air bubbles. Micro-bubbles often remain trapped in the shim stack or reservoir. Under track driving or aggressive street use, those bubbles cause cavitation. That is the rapid formation and collapse of vapor cavities in the oil. It kills damping consistency.
Professional servicing uses vacuum bleed machines, similar to Andreani systems. These machines pull a near-perfect vacuum inside the damper body before filling it with oil. The result is that 100 percent of the internal volume is occupied by hydraulic fluid. Cavitation risk is eliminated and the damper reacts instantly to road inputs.
The Truth Detector: Shock Dynos
How do you know if a rebuild was successful? You cannot feel a 5 percent variance in rebound force with your hands, but your car will feel it in a mid-corner bump. This is where the shock dyno, such as a Roehrig, becomes the ultimate trust signal.
A dyno spins the damper at various velocities to map the compression and rebound forces. If you are comparing rebuild services or evaluating used coilovers, demand dyno graphs. They act as a heartbeat monitor for your suspension, confirming the valving is performing exactly as the maker intended.
The Nitrogen Factor
Many budget rebuilds use compressed air. Nitrogen is the industry standard for a reason. Unlike air, nitrogen is dry and inert. It does not expand significantly with heat, so reservoir pressure stays constant even when damper temperature spikes during a 20-minute track session. On a street car, a depleted nitrogen charge leads to aerated oil and a floaty, inconsistent ride. Always recharge with nitrogen after any rebuild.
Key Insight
On a street car, a depleted nitrogen charge does not just feel bad -- it is genuinely unsafe. Aerated shock oil loses damping consistency at speed, reducing tire contact and lengthening braking distances.
The Chemistry of Longevity: Solvents vs. Seals
One of the most common causes of premature coilover failure is not aggressive driving. It is bad chemistry. There is a persistent myth that WD-40 is a catch-all for seized collars and general cleaning. Standard WD-40 is a solvent, not a lubricant.
Most modern coilovers use Nitrile (Buna-N) o-rings and seals. Exposure to petroleum-based solvents like WD-40 can cause Nitrile rubber to swell by 5 to 10 percent. In a precision hydraulic system, a 10 percent swell is catastrophic. It causes seals to bind, tear, or bypass, leading to immediate leaks under pressure.
This is one of the most overlooked causes of seal failure in enthusiast-maintained kits. Countless forum threads blame the brand when the actual culprit is the can of WD-40 used to loosen a stuck locking collar. Use the right chemicals and your seals last. Use the wrong ones and you are replacing them ahead of schedule.
The Correct Chemical Protocol
- For threads: Use silver anti-seize, nickel-based. Copper anti-seize can react with aluminum damper bodies through galvanic corrosion. Nickel and silver variants provide a neutral barrier that prevents locking collars from seizing to the threaded body.
- For cleaning: Use mild soap and water or non-petroleum degreasers.
- For protection: Use dry-film lubricants such as PTFE sprays. These do not attract grit and grime the way wet lubricants do.
Structural Engineering: The True Rear Debate
For Nissan 370Z and Infiniti G37 owners, the upgrade path leads to a choice. You can stick with the OEM divorced setup, where the spring sits on the bucket and the shock is separate. Or you can convert to a true rear coilover, where spring and shock are integrated. This is not just a preference. It is a structural engineering decision.
The OEM chassis was designed to carry spring load on the lower control arm and the subframe bucket. The shock tower was designed to handle damping forces, not the full corner weight of the car.
True rear advantages: integrating the spring and shock moves the motion ratio closer to 1:1, making the suspension more responsive and easier to tune. It also cuts unsprung weight by approximately 2 to 4 lbs per corner by replacing the heavy OEM bucket arm with lightweight toe arms.
The Risk
A true rear conversion concentrates 100 percent of the rear corner weight onto the upper shock mount. Without reinforcement, this can cause sheet metal fatigue or deformation over time on a street car. For dedicated track cars with cages or reinforcement plates, true rear is superior. For street cars, a high-quality divorced setup often provides the better long-term result.
Advanced Adjustment Protocols
Having 32 clicks of adjustment means nothing if you do not understand how the valving curve reacts. A common mistake is assuming the clicks are linear. They are not.
On high-end kits, the most critical damping changes occur in the first 8 to 12 clicks from full stiff. This is where the needle valve restricts flow most aggressively. Once you pass the mid-range, the fluid bypass is wide enough that further clicks from 20 to 30 deliver diminishing returns.
Understanding where your spring rate and damping interact matters. Too much compression damping relative to your spring rate and the car crashes over bumps. Too little and it rolls excessively under load. The clicks only mean something if you understand what they are doing to the fluid path.
The Droop Method vs. Preload
Many users confuse ride height adjustment with spring preload. They are not the same thing.
Ride height should be adjusted by threading the lower mount up or down the shock body. This keeps shock travel consistent and your spring rate effective.
Preload compresses the spring before the car is on the ground. Excessive preload reduces droop travel. That is the ability of the wheel to extend into a depression or maintain contact during weight transfer.
If your car feels crashy over bumps, you likely have not bottomed out the suspension. You have topped it out. Zero droop travel means the wheel cannot follow the road surface on the rebound side. Check your ride height setup before blaming the damper.
Performance Suspension and the Long Game
A coilover kit from KW Suspension, Fortune Auto, or BC Racing is not a bolt-on fix. It is a platform. The brands that earn long-term loyalty do so because their kits are built with proper seal architecture, rebuildable internals, and real technical support. That means you can service them correctly, dial them in properly, and keep them performing for years.
Questions About Setup or Rebuild Intervals?
We stock BC Racing, KW, Fortune Auto, and Ohlins and can help you get the most out of what you are running.
1-800-460-9106 Browse Coilover KitsFrequently Asked Questions
Can I re-valve my coilovers at home?
Technically yes, practically no. Re-valving involves changing the shim stack, thin metal discs from 0.1mm to 0.3mm that control oil flow. Without a shock dyno to verify the new damping curve, you are guessing. Get a professional dyno verification after any re-valve.
How often should coilovers be serviced?
For street use, a visual inspection and thread cleaning every 15,000 miles. Full rebuilds replacing seals and oil are recommended every 30,000 to 40,000 miles, or sooner for track cars. Check your locking collar threads for corrosion at every inspection.
Why does my coilover clunk at low speeds?
This is rarely the damper itself. It is usually the pillowball top mount or a loose locking collar. If the top nut on the piston shaft is even slightly loose, it creates a distinct clunk. Check preload and top nut torque specs before assuming the damper has failed.
Is nitrogen charging necessary for street cars?
Yes. The nitrogen charge keeps pressure on the oil to prevent foaming. Even on the street, rapid oscillation on a highway can aerate the oil if the charge has leaked out. A depleted charge leads to a floaty, inconsistent ride.
What is the difference between a monotube and twin-tube in terms of serviceability?
Monotube designs from BC Racing and Fortune Auto use a single tube with a floating piston separating the oil and nitrogen gas. This makes them easier to service and recharge. Twin-tube designs are more complex to rebuild, and many entry-level versions are crimped shut.
What happens if I use the wrong anti-seize on aluminum damper bodies?
Copper-based anti-seize reacts with aluminum through galvanic corrosion. Over time this seizes the threads it was meant to protect. Use nickel or silver-based anti-seize on aluminum damper bodies.
How do I know if my spring rate is matched to my damping?
If the car crashes over high-speed bumps but rolls smoothly at low speed, your compression damping is too high for your spring rate. If it floats and wallows, compression is too low. A corner balance session with a professional tuner is the cleanest way to verify the match.
